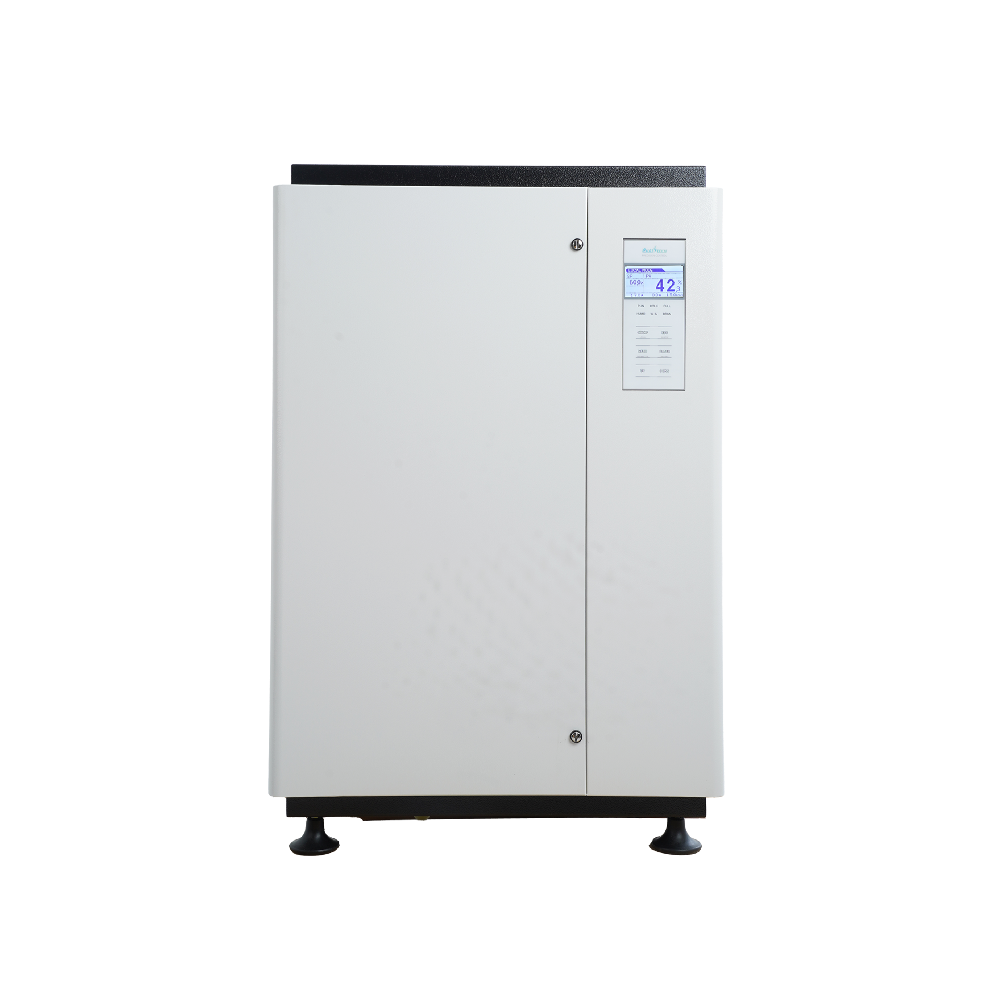

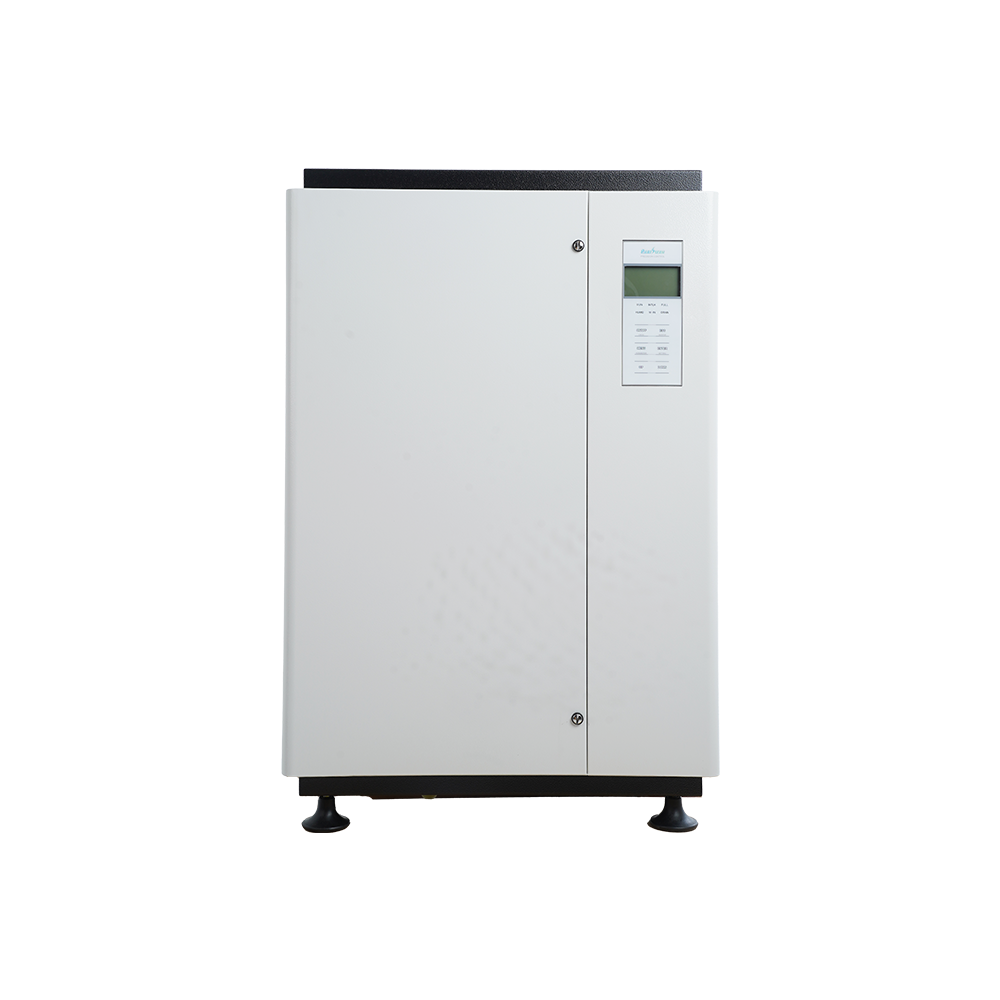

Stand-alone Electrode Steam Humidifier BH045-3
Stand-alone humidifier, 3P 380~415V Humidification Capacity 45Kg/h

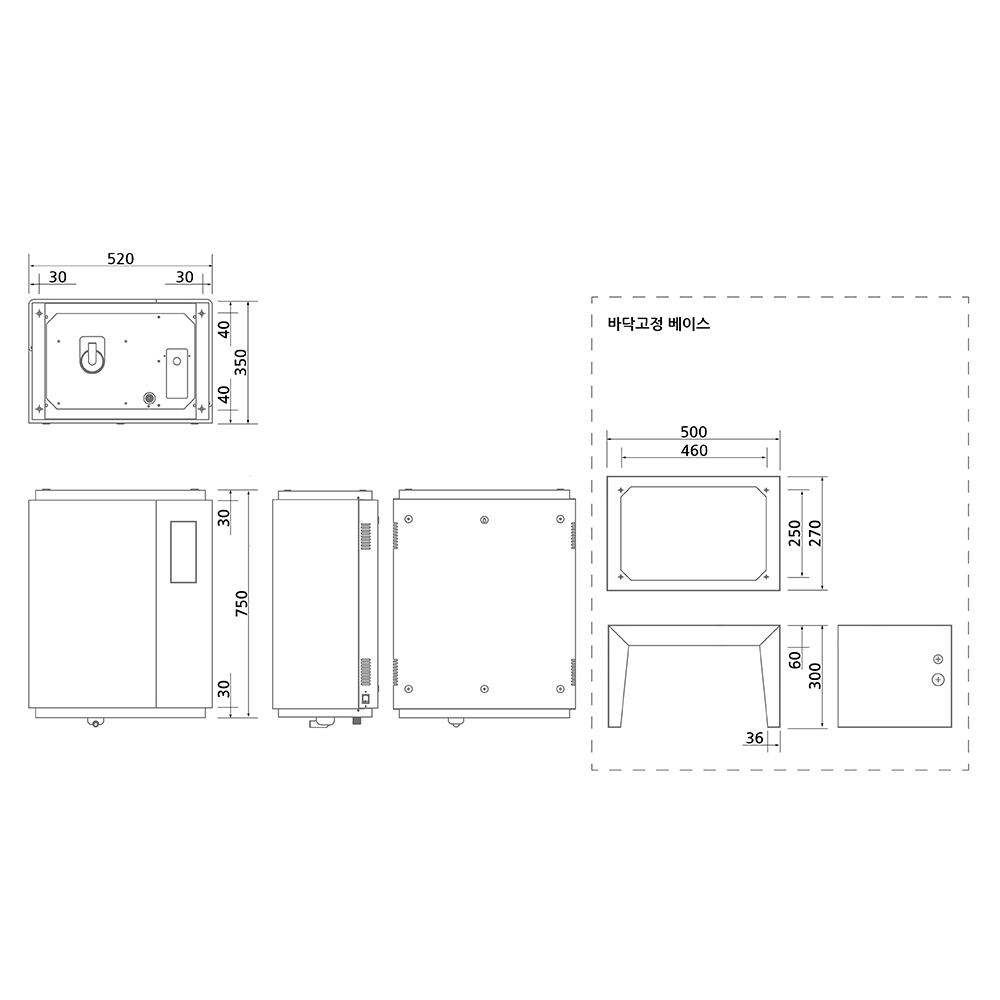

Cylinder CY045-3, 520X350X750 / 34Kg
Water supply 1P 220VAC,1/4 inch Copper pipe and purifier hose,2~8Bar
Drain 1P 220VAC, ID22[mm]Heat-resistant hose, 8 l /min
Option - Steam Nozzle, Hose, FANUNIT, Humidity Sensor, NTC, Floor-mounted base
Overview
The BH-Series is a standalone humidifier that integrates innovative design and advanced technology to meet diverse customer needs while Up toimizing user convenience. With a European-style design and structure, it is suitable for installation in various indoor environments requiring humidification, including air conditioning systems. This product offers nine different operating modes and supports multi-input as standard, allowing for a wide range of configurations. Through interlinked operation of up to eight units (Master/Slave configuration), it can accommodate capacities ranging from 2 kg/h (small-scale) to 360 kg/h (large-scale humidification). Additionally, it supports NTC-based temperature control functions, making it applicable for personal SPA facilities utilizing generated steam.
Features
1. Convenient Installation
· Offers nine standard operating modes to accommodate various customer needs, including remote operation, self-operation, and proportional operation.
2. High Limit Sensor
· Prevents excessive humidity inside the duct caused by seasonal changes or high humidification - demand.
· Allows an additional humidity sensor to be installed inside the discharge duct for precise humidification capacity control.
3. Proportional Control
· When used with Seungil Electronics’ exclusive controller, supports ON/OFF operation and proportional capacity control based on input signals.
4. Interlinked Operation Between Units
· Supports modular unit combinations (4, 8, 15, 45 kg/h). Enables interlinked operation of up to eight units, allowing
flexible humidification system configurations from 2 kg/h to 360 kg/h.
5 Multi-Input Compatibility
· When used with Seungil Electronics' controller, supports ON/OFF operation and proportional capacity control
Specifications
Product Name |
Stand-alone Electrode Steam Humidifier |
Brand Name |
Seungil Electronics |
Model No. |
BH045-3 |
Weight |
34Kg |
Origin |
Republic of Korea |
